Commercial & Garage Series

Unit Features

• Powder Coated ASME Tanks with four feet (G3516VX75 has three feet)
• Metal Belt Guard (G3516VX75 has plastic belt guard)
• Copper Discharge & Unloader Tube for strength & increased heat dissipation

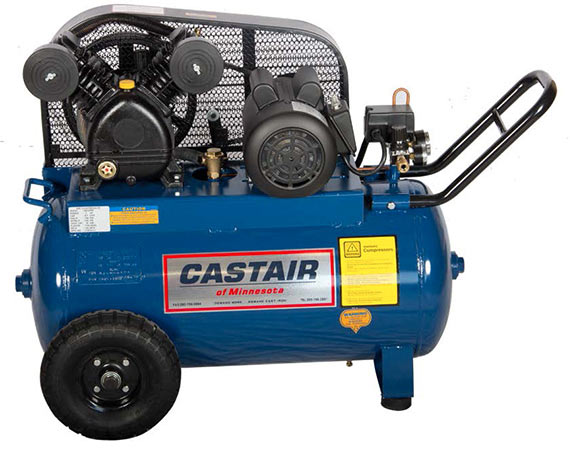

• Mounted Regulator w/ gauge & quick coupler on G212P50 & G15115VP30

All Pumps

• All Cast Iron & Slow R.P.M. for long life & quiet operatiion
• Automotive Type Filters/Silencers for clean air intake & quiet operation
• Easy Read Sight Glass to insure proper oil levels

Single Stage Pumps

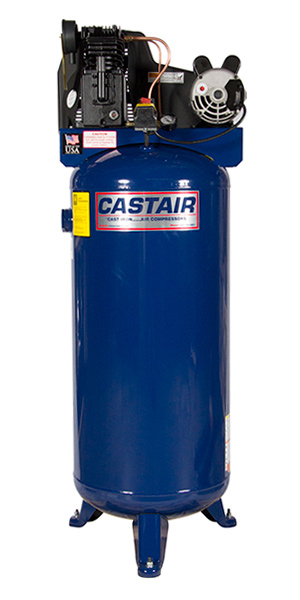

• Smooth Running V-Twins for 360 degree cooling around both cylinders (G3516VS75 has an inline twin)
• Automotive Type Ball Bearings for superior crankshaft support
• Bleeder Pressure Switch for load-less starts
• Set to shut off at 125 PSI.

2 Stage Pumps

• Tapered Roller Bearings at both ends of crankshaft for superior support & less friction
• Mechanical Centrifugal Unloader for loadless start-up
• Set to shut off at 175 PSI.

Commercial Series Pumps

• Precision Steel Connecting Rods for long life & reliability
• Automotive Type Rod Insert Bearings at crankshaft
• Needle Bearings at wrist pin
• Disc & Spring Valves for easy service, higher efficiency & reliability
• Four Ring Pistons for higher efficiency & less oil carry-over

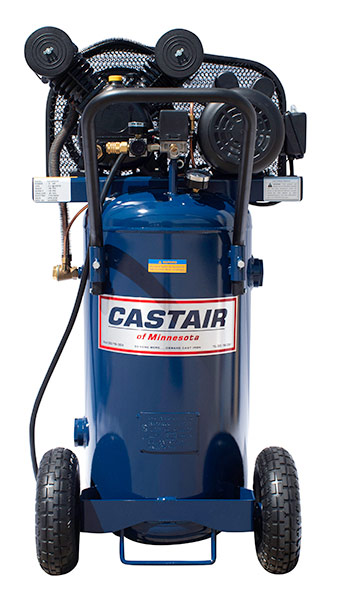

Garage Series - Piston Air Compressors

Single Phase - 3,450 R.P.M. motor w/ overload protection. No magnetic starter required.

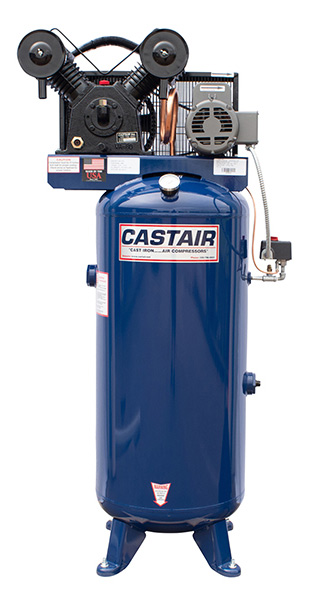

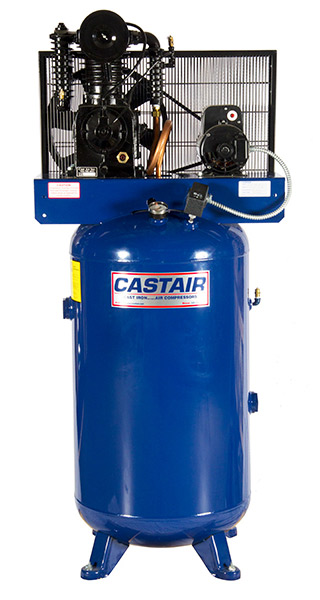

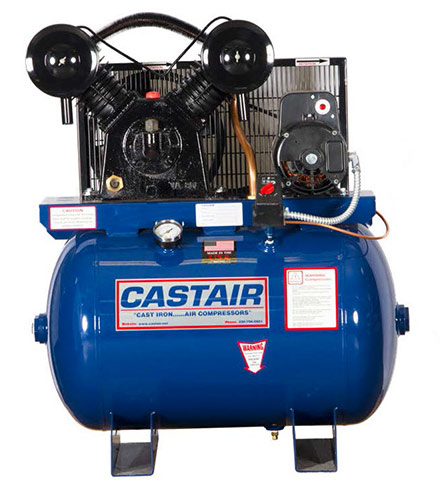

Commercial Series - Piston Air Compressors

Single Phase - 3,450 R.P.M. motor w/ full-service factor & overload protection. No magnetic starter required.
