COMMERCIAL SERIES – Electric

1 PHASE – MOTOR 3450 R.P.M. WITH FULL 15% SERVICE FACTOR & OVERLOAD PROTECTION.

HP	Phase	Tank Gal./Type	Pump R.P.M	CFM @ 0-PSI	CFM @ 175 PSI	LxWxH	Voltage Amps	Wt. (lbs)	Unit Model
5	SINGLE	30. horiz	1088	23.7	18.3	33x18x38	230/22	600	C513HA8
5	SINGLE	60 vert.	1088	23.7	18.3	34x20x68	230/22	600	C516VA8
5	SINGLE	80 vert.	1088	23.7	18.3	32x24x66	230/22	700	C518VA8
5	SINGLE	80 horiz.	1088	23.7	18.3	64x20x41	230/22	700	C518HA8
5	TWO	80 vert.	715	21.7	18.1	32x24x74	230/22	655	C518VC1
5	TWO	80 horiz.	715	21.7	18.1	64x20x48	230/22	655	C518HC1

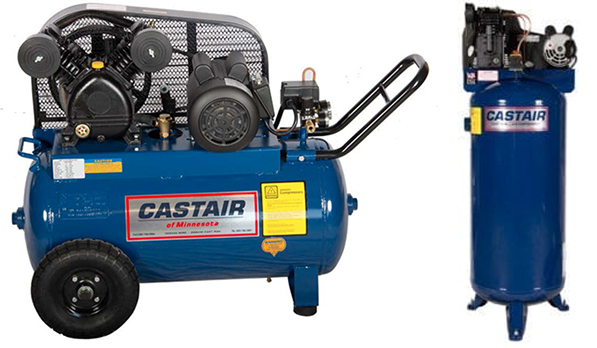

GARAGE SERIES – Electric

1 PHASE – MOTOR 3450 R.P.M. WITH OVERLOAD PROTECTION – NO MAG. STARTER REQUIRED

HP	Stage	Tank Gal/Type	Pump R.P.M.	C.F.M @ 0-PSI	C.F.M.@ 100-PSI	LxWxH Dimension	Voltage Amps	WT. Shipped	Unit Model
1.5	SINGLE	15 v-port	1200	10.0	4.8	22x18x40	115/12	150	G15115VP30
2	SINGLE	20 port.	1380	10.4	6.5	33x19x30	115/15	175	G212P50
3.5	SINGLE	60 vert.	1100	18.6	11.5	31x27x70	230/15	250	G3516VS75

All Garage & Commercial Series Pumps Feature:

Slow R.P.M. oil lubed CAST IRON belt driven pumps for quiet operation & long life.
Automotive type filters/silencers with paper element provide clean intake air & quiet operation.
Easy to read sight glass to insure proper oil level at a glance.

All Garage & Commercial series Units Feature:

Powder coated ASME-tanks.
Four feet on all stationary models. *Rigid metal belt guards.
Copper discharge & unloader tube for strength & increased heat dissipation.
G212P50 has a mounted regulator with gauge & quick coupler.
Single stage factory set to shut off at 125 PSI. *Two stage factory set to shut off at 175 PSI.

All Commercial Series Pumps Feature:

Precision steel connecting rods with automotive type rod insert bearings at crankshaft & needle bearings at wrist pin for long service, life, & reliability.
Disc & spring valves for easy service, higher efficiency and reliability.
Pistons have 4-rings for higher efficiency & less oil carry-over.

All Single Stage Pumps Feature:

Smooth running v-twins for 360 deg. cooling around both cylinders (G3516VS75 is an inline twin).
Main bearings are automotive type ball bearings for superior crankshaft support.
Bleeder pressure switch for load-less starts.

All Two Stage Pumps Feature:

Tapered roller bearings at both ends of crankshaft for superior support & less friction.
Mechanical centrifugal unloader…for loadless start-up every time.
