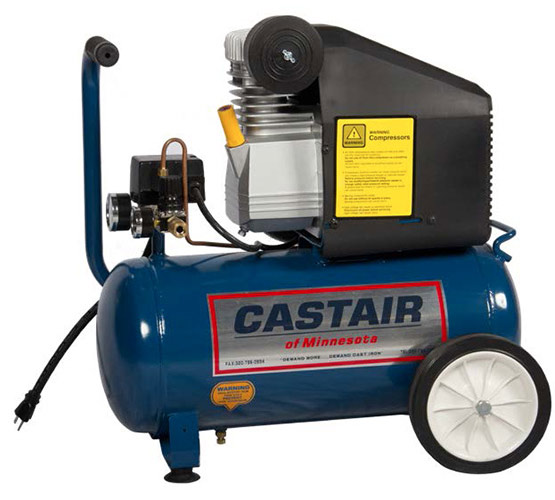

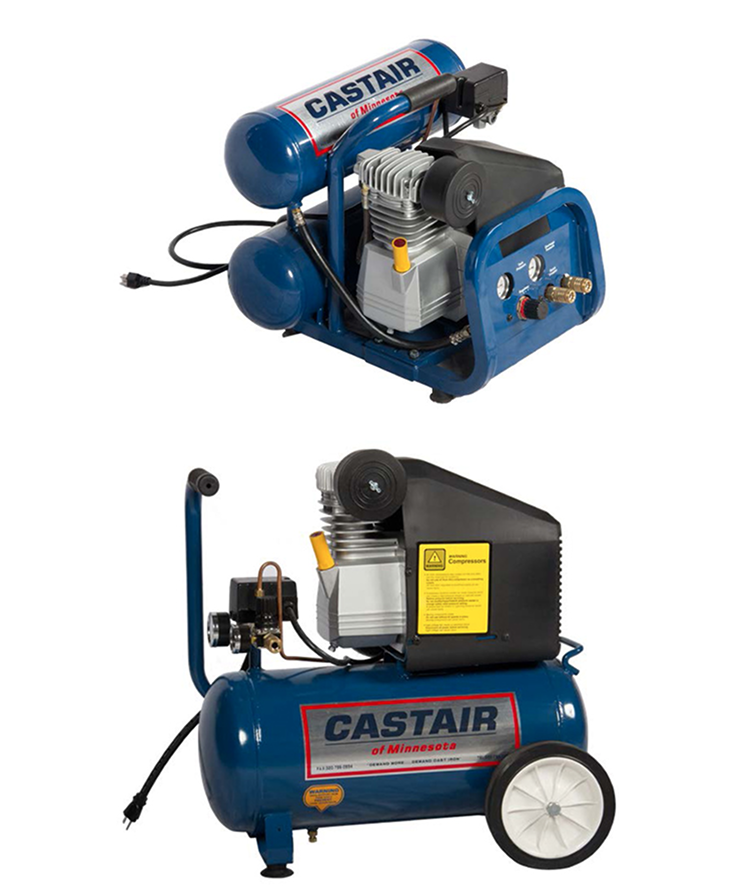

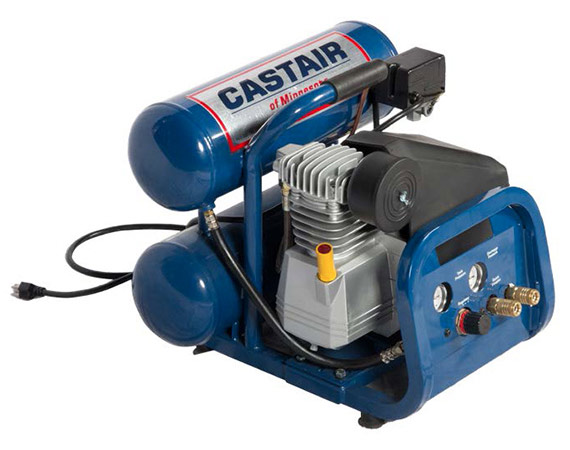

Contractor Series - Electric

SINGLE STAGE 125psi – DIRECT DRIVE – OIL LUBED – ELECTRIC 1725 R.P.M.

Direct-Drive Features

• Regulator w/gauge mounted & quick coupler.
• Up to 10 times the life of oil-less units.
• Fan cooled thermal overload protected motor.
• Filter/silencers provide clean air and quiet operation.
• Heavy duty pressure switch with on/off control & copper bleeder tube.
• Heavy duty oil lubricated with Cast Iron sleeve pump for long life *PD1006 oil-less.
• Finned copper discharge tube for strength & increased heat dissipation.
• ASME-safety valve installed, 8-gallon single tank units are non-ASME.
• Two piece connecting rod, independent wrist pin, & a real piston w/3-rings.

Contractor Series - Gas

SINGLE STAGE 125psi – BELT DRIVE – OIL LUBED – GAS

Belt-Drive Features

• Paper filter/silencers provides clean air and quiet operation.
• Finned copper discharge tube for strength & increased heat dissipation.
• With independent connecting rod, wrist pin and 3 piston rings.
• Easy to read sight glass to insure proper oil level at a glance.
• Gas units have head unloaders-VS-dump valves for better cooling & less load on engine in unloaded mode.
• Ball bearings at both ends of crankshaft for less friction.
• Powder coated ASME tank & safety valve installed.
• V-Cylinder design for 360 deg. cooling & long life.
• Smooth reliable Honda engines throttle control.

Engine Model	Engine Make	Tank Gal/Type	C.F.M @ 0-PSI	C.F.M.@ 100-PSI	Pump R.P.M	LxWxH Dimension	WT. Shipped	Unit Model
GX160	Honda	8/ twin tank	18.6	11.6	1380	38x18x26	185	PUK5508G
GX160	Honda	20/ portable	18.6	11.6	1380	33x18x33	195	PUK5520G
GX270	Honda	8/ twin tank	23.9	18.6	1380	42x18x28	250	PUK9008G
2 Elec.	115/1/15	8 twin tank	10.4	6.5	1380	38x18x26	150	C218T50U
