Gas Powered Air Compressors

Industrial Gas-Powered Series

I13GH3HC1I13GH3HC1
I13GH3HC1

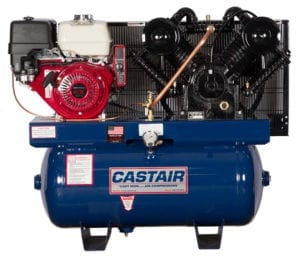

I13GH3HC2I13GH3HC2
I13GH3HC2

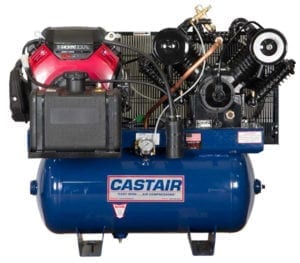

I20GH3HC2I20GH3HC2
I20GH3HC2
I13GH3HC1GWI13GH3HC1GW
I13GH3HC1GW

Pumps

  • All Cast Iron for long life & quiet operation
  • Slow R.P.M. for quiet operation & long life
  • Tapered Roller Bearings at both ends of crankshaft for superior support & less friction
  • Precision Steel Connecting Rods with automotive type rod insert bearings at crankshaft & bearings at wrist pin for long service, life, & reliability
  • Disc & Spring Valves for easy service, higher efficiency and reliability
  • Pistons Have 4-rings for higher efficiency & less oil carry-over
  • Centrifugal Unloader for loadless start-up every time

Tanks, Motors, Controls

  • Powder Coated ASME Tanks with 4 legs on verticals, channel on horizontals
  • ASME Safety Valves
  • Metal Belt Guard totally enclosed
  • Copper Discharge & Unloader Tube or Stainless-steel Braided Flex Line
  • Heavy Duty 1725 R.P.M. industrial motors, with full 15% service factor or higher

Generator (G)

  • 5k Watts/ 5.5k Surge Watts
  • 2 X 115 Volt / 17 Amp Outlets
  • 1 X 230 Volt / 23 Amp Outlet

Welder (W)

  • 240 Amp DC Arc
  • Universal 55mm quick connects
  • Duty Cycle: 130A = 100%, 180A = 60%, 240A = 35%

Gas Powered - 2 Stage - Piston Air Compressors

Includes Oil Drain Kit, Throttle Controls, Fuel Tank, & 12V Alternator. 12V battery not included.

Honda ModelStarter TypeTank Gal/TypePump R.P.M.CFM @ 0 PSICFM @ 175 PSILxWxH (Inches)Wt. (Lbs)Unit Model
GX390Rope / Electric30 Horizontal99535.028.143x22x42550I13GH3HC1
GX390Rope / Electric30 Horizontal63537.030.348x22x40605I13GH3HC2
GX630Electric30 Horizontal8855543.650x34x43640I20GH3HC2
GX390Rope / Electric30 Horizontal80824.719.748x23x42650I13GH3HC1GW

Factory Mountable Options

Parts below may be purchased as a package or individually.

Pump Model
C1C2
PartLow Oil Control6304
Hour MeterHRM50
Electronic Auto DrainSDV03
Dual ControlDC1DC2
Intake Noise SilencerSA100
Right from the Start KitRFS001
Belt Guard AftercoolerBGAC1BGAC2
All Options Package (Save 10%)AOC1AOC2

Parts below may be purchased factory mounted or loose.

  • Belt Tensioner:
    • 256D (20 HP)
    • 284D (25 & 30 HP)
  • Air Operated Valve: ADVSM
  • Time Delay: TD100

Right from the Start Kit

This kit is included in the All Options Package. Parts may also be purchased individually.

RFS001
PartSemi-Synthetic OilGA5W30
Vibration PadsVP100
Ball ValveBV75 (3/4")
18" Flex HoseVA075 (3/4")
Air Filter16D

Maintenance Oil

5W/30, Semi-Synthetic. Rating 4 months or 400 hours.

Part #Size
QT5W301 Quart
GA5W301 Gallon

10W/30, Full Synthetic. Rating 8 months or 800 hours.

Part #Size
QT10W301 Quart
GA10W301 Gallon

Honda Oil Drain Kits

Part #Applicable Models
HON1010GX100 – GX200
HON1012GX240 – GX390
HON1420GX630 – GX660

Contractor Gas-Powered Series

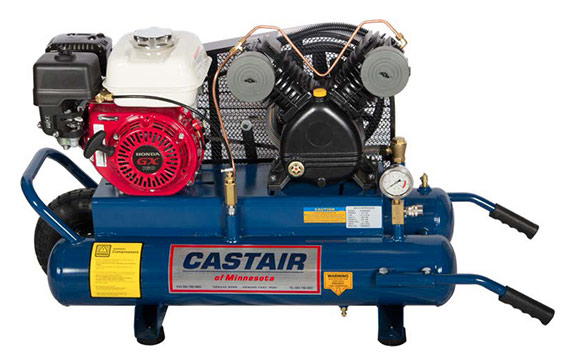

PUK5508GPUK5508G
PUK5508G
  • Paper Filter/Silencers provides clean air and quiet operation
  • Finned Copper Discharge Tube for strength & increased heat dissipation
  • Independent connecting rod, wrist pin and 3 piston rings
  • Easy Read Sight Glass to insure proper oil level
  • Head Unloaders-VS-Dump Valves for better cooling & less load on engine in unloaded mode
  • Ball Bearings at both ends of crankshaft for less friction
  • Powder Coated ASME Tank w/ safety valve installed
  • V-Cylinder Design for 360 degree cooling & long life
  • Smooth reliable Honda engines throttle control

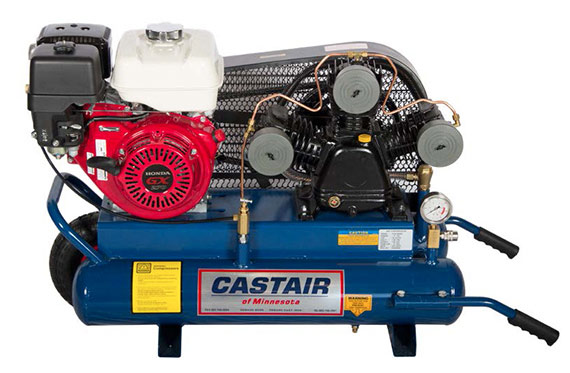

PUK9008GPUK9008G
PUK9008G

Gas Powered - Single Stage - Piston Air Compressors

1725 RPM, Wheelbarrow or 2-Wheel Design.

Honda ModelTank Gal/TypeCFM @ 0 PSICFM @ 100 PSIPump R.P.M.LxWxH (Inches)Wt. (Lbs)Unit Model
GX1608 Twin Tank Wheelbarrow18.611.6138038x18x26185PUK5508G
GX16020 2-Wheel Horizontal18.611.6138033x18x33195PUK5520G
GX2708 Twin Tank Wheelbarrow23.918.6138042x18x28250PUK9008G
