Industrial Air Compressors

Industrial Electric Series

Pumps

All Cast Iron & Slow R.P.M. from 420 to 995 for long life & quiet operation
Tapered Roller Bearings at both ends of crankshaft for superior support & less friction
Precision Steel Connecting Rods w/ automotive type rod insert bearings at crankshaft & bearings at wrist pin for long service, life, & reliability
Disc & Spring Valves for easy service, higher efficiency and reliability
Pistons Have 4-rings for higher efficiency & less oil carry-over
Centrifugal Unloader for loadless start-up every time

Tanks, Motors, Controls

Powder Coated ASME Tanks w/ 4 legs on vertical tanks and channel on horizontal tanks
ASME Safety Valves
Metal Belt Guard
Copper Discharge & Unloader Tube or Stainless-steel Braided Flex Line
Heavy Duty 1725 R.P.M. industrial motors, with full 15% service factor or higher

Electric - 2 Stage - Simplex - Piston Air Compressors

Single Phase 208/230V or 3 Phase 208/230/460V Models - 1 Pump, 1 Motor

HP	Tank Gal/Type	Pump R.P.M.	CFM @ 0 PSI	CFM @ 175 PSI	LxWxH (Inches)	Single Phase Models		3 Phase Models
HP	Tank Gal/Type	Pump R.P.M.	CFM @ 0 PSI	CFM @ 175 PSI	LxWxH (Inches)	Wt. (Lbs)	Unit Model	Wt. (Lbs)	Unit Model
5	80 Vertical	767	22.0	17.5	32x24x74	600	I518VC1-S	590	I538VC1-S
5	80 Horizontal	767	22.0	17.5	64x20x48	600	I518HC1-S	590	I538HC1-S
5	80 Vertical	420	22.0	17.5	40x24x74	700	I518VC2-S	690	I538VC2-S
5	80 Horizontal	420	22.0	17.5	64x20x46	700	I518HC2-S	690	I538HC2-S
7.5	80 Vertical	895	32.4	24.8	32x24x74	655	I718VC1-S	625	I738VC1-S
7.5	80 Horizontal	895	32.4	24.8	64x20x48	655	I718HC1-S	625	I738HC1-S
7.5	80 Vertical	585	35.0	28.1	40x24x74	760	I718VC2-S	730	I738VC2-S
7.5	80 Horizontal	585	35.0	28.1	64x20x46	760	I718HC2-S	730	I738HC2-S
7.5	120 Vertical	585	35.0	28.1	44x30x75	850	I7112VC2-S	820	I7312VC2-S
7.5	120 Horizontal	585	35.0	28.1	69x24x50	850	I7112HC2-S	820	I7312HC2-S
10	80 Vertical	758	45.0	35.0	32x24x74	780	I1018VC2-S	770	I1038VC2-S
10	80 Horizontal	758	45.0	35.0	64x20x48	780	I1018HC2-S	770	I1038HC2-S

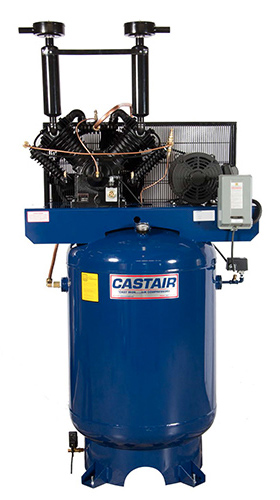

10	120 Vertical	758	45.0	35.0	44x30x75	875	I10112VC2-S	860	I10312VC2-S
10	120 Horizontal	758	45.0	35.0	69x24x50	875	I10112HC2-S	860	I10312HC2-S
10	120 Vertical	570	45.0	35.0	44x30x75	1040	I10112VC3-S	1025	I10312VC3-S
10	120 Horizontal	570	45.0	35.0	69x24x50	1040	I10112HC3-S	1025	I10312HC3-S
15	120 Vertical	898	55.0	45.3	44x30x75	N/A		980	I15312VC2-S
15	120 Horizontal	898	55.0	45.3	69x24x50	N/A		980	I15312HC2-S
15	120 Vertical	795	61.7	50.2	44x30x82	N/A		1185	I15312VC3-S
15	120 Horizontal	795	61.7	50.2	69x24x62	N/A		1185	I15312HC3-S
15	120 Horizontal	480	63.1	51.6	75x29x56	N/A		1315	I15312HC4-S
20	240 Horizontal	519	92.8	72	96x48x70	N/A		1700	I20324HC4Z-S
25	240 Horizontal	710	109	90	96x48x70	N/A		1725	I25324HC4Z-S
30	240 Horizontal	794	128	105	96x48x70	N/A		1750	I30324HC4Z-S

Electric - 2 Stage - Duplex - Piston Air Compressors

Single Phase 208/230V or 3 Phase 208/230/460V Models - 2 Pumps, 2 Motors

HP	Total HP	Tank Gal/Type	Pump R.P.M.	CFM @ 0 PSI	CFM @ 175 PSI	LxWxH Dimension	Single Phase Models		3 Phase Models
HP	Total HP	Tank Gal/Type	Pump R.P.M.	CFM @ 0 PSI	CFM @ 175 PSI	LxWxH Dimension	Wt. (Lbs)	Unit Model	Wt. (Lbs)	Unit Model
2 x 5	10	120 Horizontal	767	44	35	85x28x57	1110	D5112HC1-S	1080	D5312HC1-S
2 x 5	10	240 Horizontal	767	44	35	85x30x64	1460	D5124HC1-S	1430	D5324HC1-S
2 x 5	10	120 Horizontal	420	44	35	85x28x57	1300	D5112HC2-S	1270	D5312HC2-S
2 x 5	10	240 Horizontal	420	44	35	85x30x64	1650	D5124HC2-S	1620	D5324HC2-S
2 x 7.5	15	120 Horizontal	895	64.8	49.6	85x28x57	1240	D7112HC1-S	1210	D7312HC1-S
2 x 7.5	15	240 Horizontal	895	64.8	49.6	85x30x64	2140	D7124HC1-S	1560	D7324HC1-S
2 x 7.5	15	120 Horizontal	585	70	56.2	85x28x57	1430	D7112HC2-S	1400	D7312HC2-S
2 x 7.5	15	240 Horizontal	585	70	56.2	85x30x64	1780	D7124HC2-S	1750	D7324HC2-S
2 x 10	20	120 Horizontal	758	90	70	85x28x57	1470	D10112HC2-S	1410	D10312HC2-S
2 x 10	20	240 Horizontal	758	90	70	85x30x64	1820	D10124HC2-S	1760	D10324HC2-S
2 x 10	20	120 Horizontal	570	90	70	94x28x57	1800	D10112HC3-S	1740	D10312HC3-S

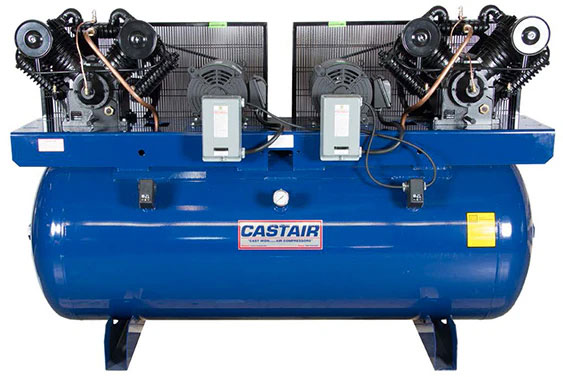

2 x 10	20	240 Horizontal	570	90	70	94x30x64	2150	D10124HC3-S	2190	D10324HC3-S
2 x 15	30	120 Horizontal	795	123.4	100.4	94x28x62	N/A		2005	D15312HC3-S
2 x 15	30	240 Horizontal	795	123.4	100.4	94x30x68	N/A		2355	D15324HC3-S

Factory Mountable Options

Parts below may be purchased as a package or individually, mounted or loose.

		C1	C2	C3	C4Z
		Pump Model
Part	Low Oil Control	6304
	Hour Meter	HRM75 (230V) \| HRM460 (460V)
	Electronic Auto Drain	SDV03
	Dual Control	DC1	DC2	DC3 (Comes Standard)
	Intake Noise Silencers	SA100*			N/A
	Right from the Start Kit	RFS001		RFS002	RFS003
	Belt Guard Aftercooler	BGAC1	BGAC2	BGAC3	BGAC4
All Options Package (Save 10%)		AOC1	AOC2	AOC3	AOC4Z

* Cannot pair silencers & dual controls on units with C3 pumps.

Parts below may be purchased factory mounted or loose.

Belt Tensioner:
(Included with units with C4Z pumps.)
- 184D (5 HP)
- 215D (7.5 & 10 HP)
- 254D (15 HP)
- 256D (20 HP)
- 284D (25 & 30 HP)

Air Operated Valve: ADVSM
Time Delay: TD100
Alternator for Duplex Models:
(Not recommended for units with dual controls.)
- ALT230 (230V)
- ALT460 (460V)

Right from the Start Kits

Kits below are included in All Options Packages. Parts may also be purchased individually.

For Simplex Models:		RFS001	RFS002	RFS003
For Duplex Models:		RFS001D	RFS002D	RFS003D
Part	Semi-Synthetic Oil	GA5W30
	Vibration Pads	VP100
	Ball Valve	BV75 (3/4")	BV100 (1")	BV125 (1.25")
	18" Flex Hose	VA075 (3/4")	VA100 (1")	VA125 (1.25")
	Air Filter	16D		2142025

Maintenance Oil

Part #	Viscosity	Size	Grade	Rating
QT5W30	5W30	1 Quart	Semi-Synthetic	4 Months or 400 Hrs
GA5W30	5W30	1 Gallon	Semi-Synthetic	4 Months or 400 Hrs
QT10W30	10W30	1 Quart	Full Synthetic	8 Months or 800 Hrs
GA10W30	10W30	1 Gallon	Full Synthetic	8 Months or 800 Hrs
