Rotary Screw Air Compressors

Rotary Screw Series

Installation

Quality name brand off the shelf magnetic starter & controls, mounted and wired, just connect power.
Self contained on a USA made ASME Tank, eliminates a water separator and plumbing to a tank.
2-year warranty on air end, electric motor & tank.

Operation

One solenoid operates AIR END, no computers.
Easy to read pressure and temperature gauges standard.
High pressure and dual high temperature shut down standard.
Factory filled with 4000 hours or one year synthetic lubricant.
Can be ordered with three pressure ranges – 135, 150 or 175 psi. (135 psi standard.)
10 minute shut down timer standard, saves electricity when air is not required.
No lockout codes – like competition brands

Maintenance

Built in air/oil separator with spin on filter.
Hour meter standard, for easy record keeping.
Off shelf V-belts with adjustable belt tightener standard.
Spin on oil filter, automotive type paper element air filter.
Air/oil lines are off shelf copper piping.
Air cooled aftercooler/oil cooler standard, can easily be removed for cleaning.
Heavy duty off shelf Industrial 1725RPM motors, with full 15% service factor or higher.

100% duty cycle. 135 PSI standard. 230V and 460V options.

HP	Phase	Tank Gal/Type	CFM @ 100 PSI	LxWxH (Inches)	Wt. (Lbs)	230V Model	460V Model
5	1	80 Vertical	20	34x26x70	480	R518VP75	N/A
5	1	80 Horizontal	20	64x32x44	480	R518HP75	N/A
7.5	1	80 Vertical	31	34x26x70	555	R718VP75	N/A
7.5	1	80 Horizontal	31	64x32x44	555	R718HP75	N/A
10	1	80 Vertical	40	34x26x70	565	R1018VP75	N/A
10	1	80 Horizontal	40	64x32x44	565	R1018HP75	N/A
10	1	120 Vertical	40	44x32x73	660	R10112VP75	N/A
10	1	120 Horizontal	40	69x33x55	660	R10112HP75	N/A
5	3	80 Vertical	20	34x26x70	470	R538VP75-230	R538VP75-460
5	3	80 Horizontal	20	64x32x44	470	R538HP75-230	R538HP75-460
7.5	3	80 Vertical	31	34x26x70	546	R738VP75-230	R738VP75-460
7.5	3	80 Horizontal	31	64x32x44	546	R738HP75-230	R738HP75-460
10	3	80 Vertical	40	34x26x70	585	R1038VP75-230	R1038VP75-460
10	3	80 Horizontal	40	64x32x44	585	R1038HP75-230	R1038HP75-460
10	3	120 Vertical	40	44x32x73	645	R10312VP75-230	R10312VP75-460
10	3	120 Horizontal	40	69x33x55	645	R10312HP75-230	R10312HP75-460
15	3	120 Vertical	52	44x32x73	765	R15312VP75-230	R15312VP75-460
15	3	120 Horizontal	52	69x33x55	765	R15312HP75-230	R15312HP75-460
15	3	120 Vertical	58	44x32x73	930	R15312VG30-230	R15312VG30-460
15	3	120 Horizontal	58	69x33x55	930	R15312HG30-230	R15312HG30-460
20	3	120 Vertical	80	44x32x73	930	R20312VG30-230	R20312VG30-460
20	3	120 Horizontal	80	69x33x55	930	R20312HG30-230	R20312HG30-460
25	3	120 Vertical	105	44x32x73	1045	R25312VG30-230	R25312VG30-460
25	3	120 Horizontal	105	69x33x55	1045	R25312HG30-230	R25312HG30-460
30	3	120 Vertical	130	44x32x73	1065	R30312VG30-230	R30312VG30-460
30	3	120 Horizontal	130	69x39x55	1065	R30312HG30-230	R30312HG30-460

Options

Electronic Auto Drain: SDV03 (factory mountable)
4"x4"x1" Vibration Pads: VP100

Full Flow Ball Valves & Metal Flex Hoses

Ball valves have female ends. Hoses have male ends.

HP	Thread Size	Ball Valve	18" Flex Hose
5 - 10	3/4" NPT	BV75	VA075
15 - 20	1" NPT	BV100	VA100
25 - 40	1.25" NPT	BV125	VA125
50 - 60	1.50" NPT	BV150	VA150

Maintenance Parts

Kit includes: 2 Air Filters, 4 Oil Filters, 1 Separator Filter, and 5 Gallons of Full Synthetic Oil (MKP50-60 Includes 1 Gallon)

		P75	G30	MP50/60
		Compressor Element (Air-End)
Part	Air Filter	20DP	32DP	RAFP50-60
	Oil Filter	ROFD62-P75	ROFD16-G30	ROFP50-60
	Separator Filter	RSFD3-4-6-G11-P75	RSFD10-16-G30	RSFP50-60
	Full Synthetic Oil	GA4000 (1 Gallon) \| FG4000 (5 Gallons)
Maintenance Kit (Save 10%)		MKP75	MKG30R	MKP50-60

Mini Pack Rotary Screw Series

Features

Very quiet, only 65 dB.
High pressure and high temperature shut down system.
Low temperature safety system, unit will not turn off and go into standby until unit is above 120 degrees F.
3-phase units have a safety device that protects the unit from incorrect rotation.
3450 RPM direct drive, no belt maintenance.
Shut down timer, programmable from 30 seconds to 4 minutes. Saves electricity when air is not needed.
Hour meter standard, for easy record keeping.
Spin-on type oil and separator filters.
Factory filled with 4000 hours or 1-year synthetic lubricant.
Dual pressure gauges on tank and compressor unit.
1-year warranty.

100% duty cycle. Factory set 105-135 PSI.

HP	Phase/Volt	Tank Gal/Type	CFM @ 145 PSI	LxWxH (Inches)	Wt. (Lbs)	Unit Model

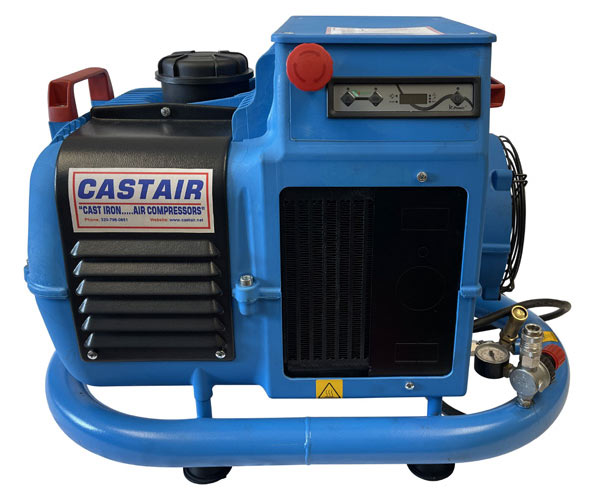

3	1/230	.7 Tubular	10.2	27x19x15	105	R31BM50
4	3/230	.7 Tubular	13.4	27x19x15	105	R33BMP50-23
4	3/460	.7 Tubular	13.4	27x19x15	105	R43BMP60-460

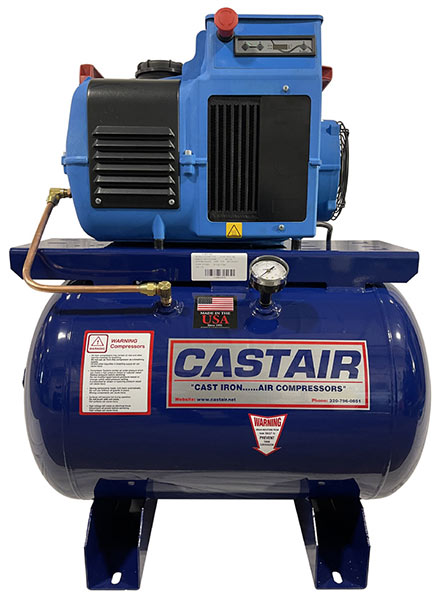

3	1/230	30 Horizontal	10.2	34x19x38	255	R313HP50
4	3/230	30 Horizontal	13.4	34x19x38	255	R433HP60-230
4	3/460	30 Horizontal	13.4	34x19x38	255	R433HP60-460
