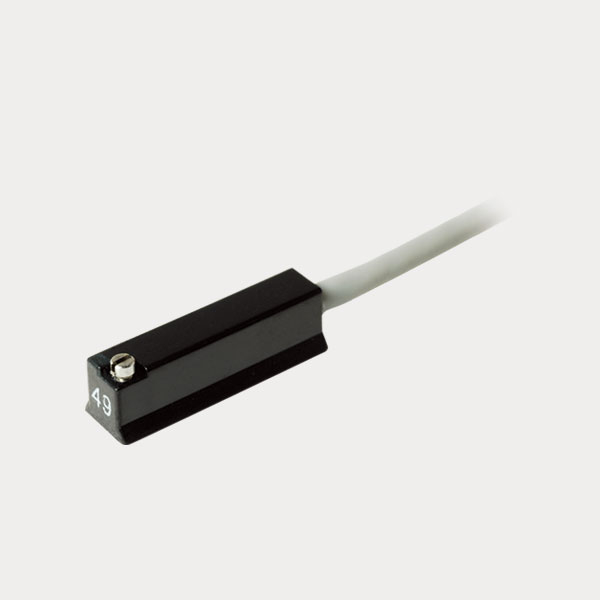

Dovetail Groove - 2-Wire - SPST - Normally Open - M8 Connector - 120V - Reed Switch

In stock
SKU
CS-30R-EQD
Adsens Technology
$21.67
Ship to USCalculate Shipping Cost
Quick Overview
Ships in 1 or 2 business days.

⚠ WARNING : This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
More Information
Approximate Weight0.200000
Groove FormDovetail Groove (Fabco-Air)
Switching LogicSPST, Normally Open
Sensor TypeReed Switch
VoltageAC/DC 120V
Voltage Range5~120V AC/DC
Switching Current50mA
Contact Rating6W
Voltage Drop2.5V
IndicatorRed LED
Cable2.8mm Dia, 2 Cores, PUR
Operating Frequency200Hz
Magnet Requirement40 Gauss Parallel
Temperature Range-10~70°C (14~158°F)
Shock30G
Vibration9G
Protection Circuit1
Other InfoEnclosure Class: IEC 60529 IP67 (NEMA6)
Set Screw Max. Torque: 1.77 in-lbs (0.2 N-m)
