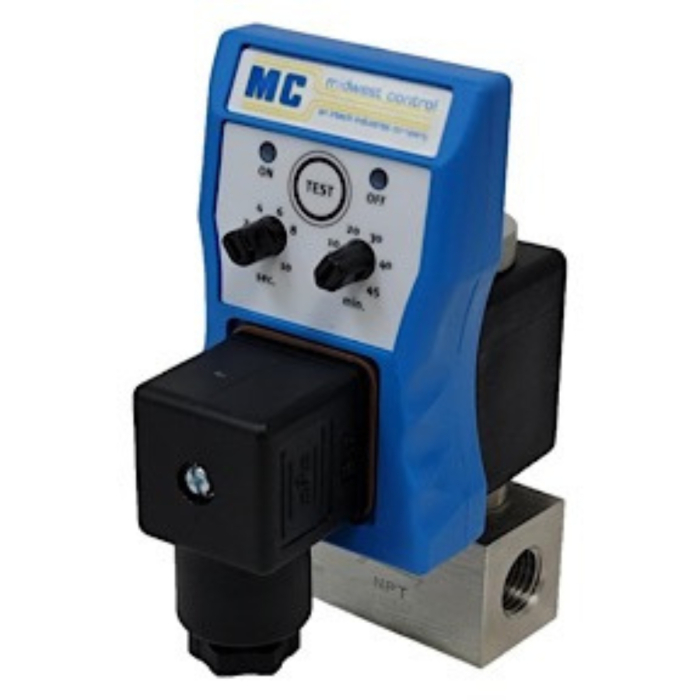

1/4 Optimum Drain 115V SS Body 3625 PSI

In stock

SKU

MC-OPT-25-3625SS

$543.47

Ship to

Calculate Shipping Cost

Country

State/Province

Zip/Postal Code

Quick Overview

UL Recognized, CE and CRN Approved
Construction: 304 Stainless Steel Body, 1.2mm Orifice
Solid State Timer
Adjustable Interval Time: 0.5 to 45 Minutes
Adjustable Discharge Time: 0.5 to 10 Seconds
Manual Test Switch
Operating Temperature: 34 F to 131 F
IP 65 NEMA 4 Rated
Yellow LED On - Off Lights
Housing: ABS Fire Resistant
Can Be Mounted in Any Position
Includes 6 Ft Power Cord with Plug
Inlet and Outlet Connection: FNPT
1 Year Manufacturers Warranty

Details

Condensate Drains are an Essential Component for All Compressed Air Systems. Compressor Systems Which Do Not Properly Drain the Condensate Can Cause Damage to Components. Ideal for Use on Air Receivers, Filter, Dryers Separators and Drip Legs.

More Information

More Information
Approx. Shipping Weight	8.810000
MPN	OPT-25-3625SS

1/4 Optimum Drain 115V SS Body 3625 PSI
