SPC / Sang-A Female Straight Connector - Use to pipe a male thread.
Please note there is a rolling part change for Sang-A fittings. More information can be found here: Part Change Notification. If you require older non-G versions, please call for stock. Sang-A is no longer manufacturing older non-G versions.

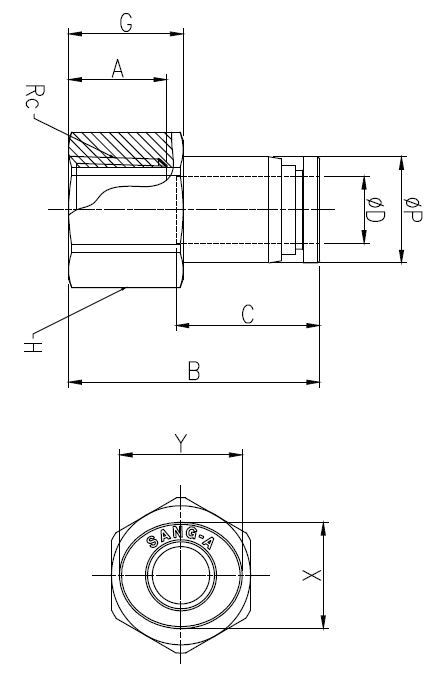

| MODEL | ØD | Rc | ØP | G | A | B | C | H | X | Y | Orifice (Ømm) | W.G(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPCF 5/32-N01U | 5/32 | NPT1/8 | 8.8 | 11 | 9 | 24.5 | 14.6 | 9/16 | 8.6 | 10.8 | 3.2 | 13.1 |
| GPCF 5/32-N02U | 5/32 | NPT1/4 | 8.8 | 14 | 12 | 27.5 | 14.6 | 11/16 | 8.6 | 10.8 | 3.2 | 19.4 |
| PCF 3/16-N01U | 3/16 | NPT1/8 | 10.3 | 11 | 9 | 26.9 | 17 | 9/16 | 11 | 13 | 3.5 | 15.1 |
| PCF 3/16-N02U | 3/16 | NPT1/4 | 10.3 | 14 | 12 | 29.9 | 17 | 11/16 | 11 | 13 | 3.5 | 22.2 |
| GPCF 1/4-N01U | 1/4 | NPT1/8 | 11.5 | 11 | 9 | 25.4 | 15.5 | 9/16 | 11.4 | 13.4 | 5 | 16.1 |
| GPCF 1/4-N02U | 1/4 | NPT1/4 | 11.5 | 14 | 12 | 28.4 | 15.5 | 11/16 | 11.4 | 13.4 | 5 | 25.4 |
| GPCF 1/4-N03U | 1/4 | NPT3/8 | 11.5 | 15 | 13 | 29.4 | 15.5 | 3/4 | 11.4 | 13.4 | 5 | 25.6 |
| GPCF 5/16-N01U | 5/16 | NPT1/8 | 13 | 10 | 9 | 27.7 | 17.8 | 9/16 | 13 | 15 | 7 | 16.7 |
| GPCF 5/16-N02U | 5/16 | NPT1/4 | 13 | 14 | 12 | 30.7 | 17.8 | 11/16 | 13 | 15 | 7 | 26.0 |
| GPCF 5/16-N03U | 5/16 | NPT3/8 | 13 | 15 | 13 | 31.7 | 17.8 | 7/8 | 13 | 15 | 7 | 33.9 |
| GPCF 5/16-N04U | 5/16 | NPT1/2 | 13 | 18 | 16 | 34.7 | 17.8 | 7/8 | 13 | 15 | 7 | 40.0 |
| GPCF 3/8-N01U | 3/8 | NPT1/8 | 15.5 | 10 | 9 | 29.2 | 19.2 | 11/16 | 16 | 18.5 | 6 | 28.2 |
| GPCF 3/8-N02U | 3/8 | NPT1/4 | 15.5 | 13 | 12 | 32.2 | 19.2 | 11/16 | 16 | 18.5 | 8 | 28.8 |
| GPCF 3/8-N03U | 3/8 | NPT3/8 | 15.5 | 15 | 13 | 33.2 | 19.2 | 3/4 | 16 | 18.5 | 8 | 29.2 |
| GPCF 3/8-N04U | 3/8 | NPT1/2 | 15.5 | 18 | 16 | 36.2 | 19.2 | 7/8 | 16 | 18.5 | 9 | 37.3 |
| GPCF 1/2-N02U | 1/2 | NPT1/4 | 19.6 | 12 | 12 | 35.4 | 22.4 | 7/8 | 20.3 | 23.3 | 10 | 53.2 |
| GPCF 1/2-N03U | 1/2 | NPT3/8 | 19.6 | 15 | 13 | 36.4 | 22.4 | 7/8 | 20.3 | 23.3 | 10 | 50.1 |
| GPCF 1/2-N04U | 1/2 | NPT1/2 | 19.6 | 18 | 16 | 39.4 | 22.4 | 1" | 20.3 | 23.3 | 10 | 67.0 |
| PCF 5/32-R01 | 5/32 | Rc1/8 | 10 | 11 | 9 | 26.2 | 16 | 14 | 10 | 12 | 3.5 | 15.1 |
| PCF 5/32-R02 | 5/32 | Rc1/4 | 10 | 14 | 12 | 29.2 | 16 | 17 | 10 | 12 | 3.5 | 22.2 |
| PCF 5/32-R03 | 5/32 | Rc3/8 | 10 | 15 | 13 | 30.2 | 16 | 21 | 10 | 12 | 3.5 | 35.3 |
| PCF 3/16-R01 | 3/16 | Rc1/8 | 10.3 | 11 | 9 | 27.1 | 17 | 12 | 11 | 13 | 4 | 23.5 |
| PCF 3/16-R02 | 3/16 | Rc1/4 | 10.3 | 14 | 12 | 30.1 | 17 | 14 | 11 | 13 | 4 | 26.9 |
| PCF 1/4-R01 | 1/4 | Rc1/8 | 12 | 10 | 9 | 27.2 | 17 | 14 | 12 | 14 | 5 | 24.1 |
| PCF 1/4-R02 | 1/4 | Rc1/4 | 12 | 14 | 12 | 30.2 | 17 | 17 | 12 | 14 | 5 | 27.2 |
| PCF 1/4-R03 | 1/4 | Rc3/8 | 12 | 15 | 13 | 31.2 | 17 | 21 | 12 | 14 | 5 | 32.9 |
| PCF 5/16-R01 | 5/16 | Rc1/8 | 14 | 12 | 9 | 28.5 | 18.5 | 14 | 14 | 16 | 7 | 24.8 |
| PCF 5/16-R02 | 5/16 | Rc1/4 | 14 | 15 | 12 | 31.3 | 18.5 | 17 | 14 | 16 | 7 | 28.2 |
| PCF 5/16-R03 | 5/16 | Rc3/8 | 14 | 16 | 13 | 32.5 | 18.5 | 21 | 14 | 16 | 7 | 36.6 |
| PCF 5/16-R04 | 5/16 | Rc1/2 | 14 | 19 | 16 | 35.5 | 18.5 | 24 | 14 | 16 | 7 | 45.8 |
| PCF 3/8-R01 | 3/8 | Rc1/8 | 17 | 12 | 9 | 29.5 | 21 | 14 | 17 | 19 | 7 | 29.2 |
| PCF 3/8-R02 | 3/8 | Rc1/4 | 17 | 13 | 12 | 34 | 21 | 17 | 17 | 19 | 9 | 29 |
| PCF 3/8-R03 | 3/8 | Rc3/8 | 17 | 15 | 13 | 35 | 21 | 21 | 17 | 19 | 9 | 38.9 |
| PCF 3/8-R04 | 3/8 | Rc1/2 | 17 | 19 | 16 | 35.5 | 21 | 24 | 17 | 19 | 9 | 50.6 |
| PCF 1/2-R02 | 1/2 | Rc1/4 | 20 | 13 | 12 | 35.5 | 22.5 | 21 | 21 | 23 | 10 | 52.7 |
| PCF 1/2-R03 | 1/2 | Rc3/8 | 20 | 15 | 13 | 36.5 | 22.5 | 21 | 21 | 23 | 10 | 56.9 |
| PCF 1/2-R04 | 1/2 | Rc1/2 | 20 | 19 | 16 | 39.5 | 22.5 | 24 | 21 | 23 | 10 | 57.4 |
| GPCF 0401 | 4 | Rc1/8 | 8.8 | 11 | 9 | 24.4 | 14.5 | 13 | 8.6 | 10.8 | 3.2 | 13.5 |
| GPCF 0402 | 4 | Rc1/4 | 8.8 | 14 | 12 | 27.4 | 14.5 | 17 | 8.6 | 10.8 | 3.2 | 24.9 |
| GPCF 0403 | 4 | Rc3/8 | 8.8 | 15 | 13 | 28.4 | 14.5 | 19 | 8.6 | 10.8 | 3.2 | 26.3 |
| GPCF 0601 | 6 | Rc1/8 | 11 | 11 | 9 | 25.4 | 15.5 | 13 | 11 | 13 | 5 | 14.8 |
| GPCF 0602 | 6 | Rc1/4 | 11 | 14 | 12 | 28.4 | 15.5 | 17 | 11 | 13 | 5 | 26.1 |
| GPCF 0603 | 6 | Rc3/8 | 11 | 15 | 13 | 29.4 | 15.5 | 19 | 11 | 13 | 5 | 27.6 |
| GPCF 0801 | 8 | Rc1/8 | 13 | 10 | 9 | 27.7 | 17.8 | 13 | 13 | 15 | 7 | 16.4 |
| GPCF 0802 | 8 | Rc1/4 | 13 | 14 | 12 | 30.7 | 17.8 | 17 | 13 | 15 | 7 | 27.7 |
| GPCF 0803 | 8 | Rc3/8 | 13 | 15 | 13 | 31.7 | 17.8 | 19 | 13 | 15 | 7 | 29.2 |
| GPCF 0804 | 8 | Rc1/2 | 13 | 18 | 16 | 34.7 | 17.8 | 24 | 13 | 15 | 7 | 50.5 |
| GPCF 1001 | 10 | Rc1/8 | 15.5 | 10 | 9 | 29.4 | 19.4 | 17 | 16 | 18.5 | 7 | 29.9 |
| GPCF 1002 | 10 | Rc1/4 | 15.5 | 13 | 12 | 32.4 | 19.4 | 17 | 16 | 18.5 | 9 | 30.3 |
| GPCF 1003 | 10 | Rc3/8 | 15.5 | 15 | 13 | 33.4 | 19.4 | 19 | 16 | 18.5 | 9 | 32.5 |
| GPCF 1004 | 10 | Rc1/2 | 15.5 | 18 | 16 | 36.4 | 19.4 | 24 | 16 | 18.5 | 9 | 53.6 |
| GPCF 1202 | 12 | Rc1/4 | 18.8 | 12 | 12 | 35.4 | 22.4 | 19 | 19.5 | 22.5 | 10 | 45.3 |
| GPCF 1203 | 12 | Rc3/8 | 18.8 | 15 | 13 | 36.4 | 22.4 | 19 | 19.5 | 22.5 | 10 | 39.4 |
| GPCF 1204 | 12 | Rc1/2 | 18.8 | 18 | 16 | 39.4 | 22.4 | 24 | 19.5 | 22.5 | 10 | 60.6 |
| GPCF 04G01 | 4 | G1/8 | 8.8 | 11 | 9 | 24.4 | 14.5 | 13 | 8.6 | 10.8 | 3.2 | 13.2 |
| GPCF 04G02 | 4 | G1/4 | 8.8 | 14 | 12 | 27.4 | 14.5 | 16 | 8.6 | 10.8 | 3.2 | 20.4 |
| GPCF 04G03 | 4 | G3/8 | 8.8 | 15 | 13 | 28.4 | 14.5 | 19 | 8.6 | 10.8 | 3.2 | 25.2 |
| GPCF 06G01 | 6 | G1/8 | 11 | 11 | 9 | 25.4 | 15.5 | 13 | 11 | 13 | 5 | 14.5 |
| GPCF 06G02 | 6 | G1/4 | 11 | 14 | 12 | 28.4 | 15.5 | 16 | 11 | 13 | 5 | 21.7 |
| GPCF 06G03 | 6 | G3/8 | 11 | 15 | 13 | 29.4 | 15.5 | 19 | 11 | 13 | 5 | 26.5 |
| GPCF 08G01 | 8 | G1/8 | 13 | 10 | 9 | 27.7 | 17.8 | 13 | 13 | 15 | 7 | 16 |
| GPCF 08G02 | 8 | G1/4 | 13 | 14 | 12 | 30.7 | 17.8 | 16 | 13 | 15 | 7 | 23.2 |
| GPCF 08G03 | 8 | G3/8 | 13 | 15 | 13 | 31.7 | 17.8 | 19 | 13 | 15 | 7 | 28.1 |
| GPCF 08G04 | 8 | G1/2 | 13 | 18 | 16 | 34.7 | 17.8 | 24 | 13 | 15 | 7 | 48.3 |
| GPCF 10G01 | 10 | G1/8 | 15.5 | 10 | 9 | 29.4 | 19.4 | 16 | 16 | 18.5 | 7 | 27 |
| GPCF 10G02 | 10 | G1/4 | 15.5 | 13 | 12 | 32.4 | 19.4 | 16 | 16 | 18.5 | 9 | 26.1 |
| GPCF 10G03 | 10 | G3/8 | 15.5 | 15 | 13 | 33.4 | 19.4 | 19 | 16 | 18.5 | 9 | 31.3 |
| GPCF 10G04 | 10 | G1/2 | 15.5 | 18 | 16 | 36.4 | 19.4 | 24 | 16 | 18.5 | 9 | 51.5 |
| GPCF 12G02 | 12 | G1/8 | 18.8 | 12 | 12 | 35.4 | 22.4 | 19 | 19.5 | 22.5 | 10 | 44.5 |
| GPCF 12G03 | 12 | G1/4 | 18.8 | 15 | 13 | 36.4 | 22.4 | 19 | 19.5 | 22.5 | 10 | 38.3 |
| GPCF 12G04 | 12 | G3/8 | 18.8 | 18 | 16 | 39.4 | 22.4 | 24 | 19.5 | 22.5 | 10 | 58.4 |
