Introducing the Alpha, Walker Filtration’s latest range of market leading compressed air and gas filters. With enhanced housing features and a step change in element performance, the Alpha delivers a high quality filtration solution you can trust.

Offered in a range of 18 models with connection sizes ranging from 1/8" to 3", the Alpha Series has been tested to provide a saturated differential pressure of <1.8 psi (125 mbar) across X1 and XA grades - proving to be our most advanced filter to date.

With class leading performance and exceptional results in oil aerosol and particle retention, Alpha Compressed Air Filters deliver significantly reduced pressure loss and optimum filtration efficiencies - to ensure continually low operational costs.

Modular Filter

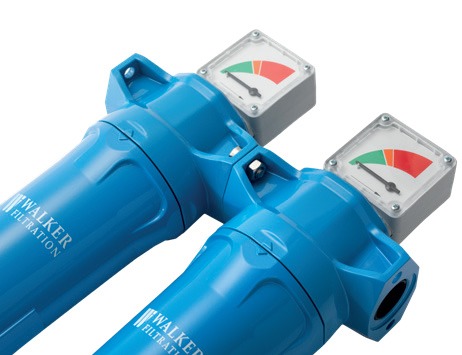

Low cost connecting kits and new filter head design enables easy close coupling assembly

Filtration Technology

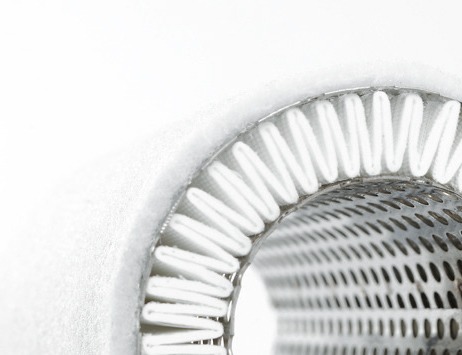

Alpha deep pleated media technology delivers a step change in performance

Externally Accessible Drain

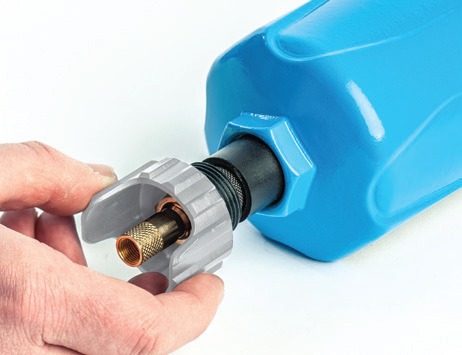

Eliminates the need to access the inside of the filter housing when servicing the drain

Flow-Optimized Design Advanced filter head design for optimized flow performance
Flexible Installation Modular design and accessible fixings enable simple close coupling assembly
Market Leading Performance Custom engineered filtration media delivers optimum performance in line with air quality standard ISO 8573-1: 2010
Simplified Serviceability Externally accessible drain, profiled bowl design and unique push fit elements ensure quick and reliable maintenance
Corrosion Protection Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating
Color Coded Element End Caps Easy and accurate grade identification
Product Safety in Mind Guaranteed safe housing closure with rotational safety stop

A30006 to A31500 - Technical Specs

FLow Rates 6 SCFM to 1500 SCFM

Pipe Size	Inlet Flow Rate (SCFM)*	Dimensions (Inches)				Weight (Lbs)	Unit Model	Element Model

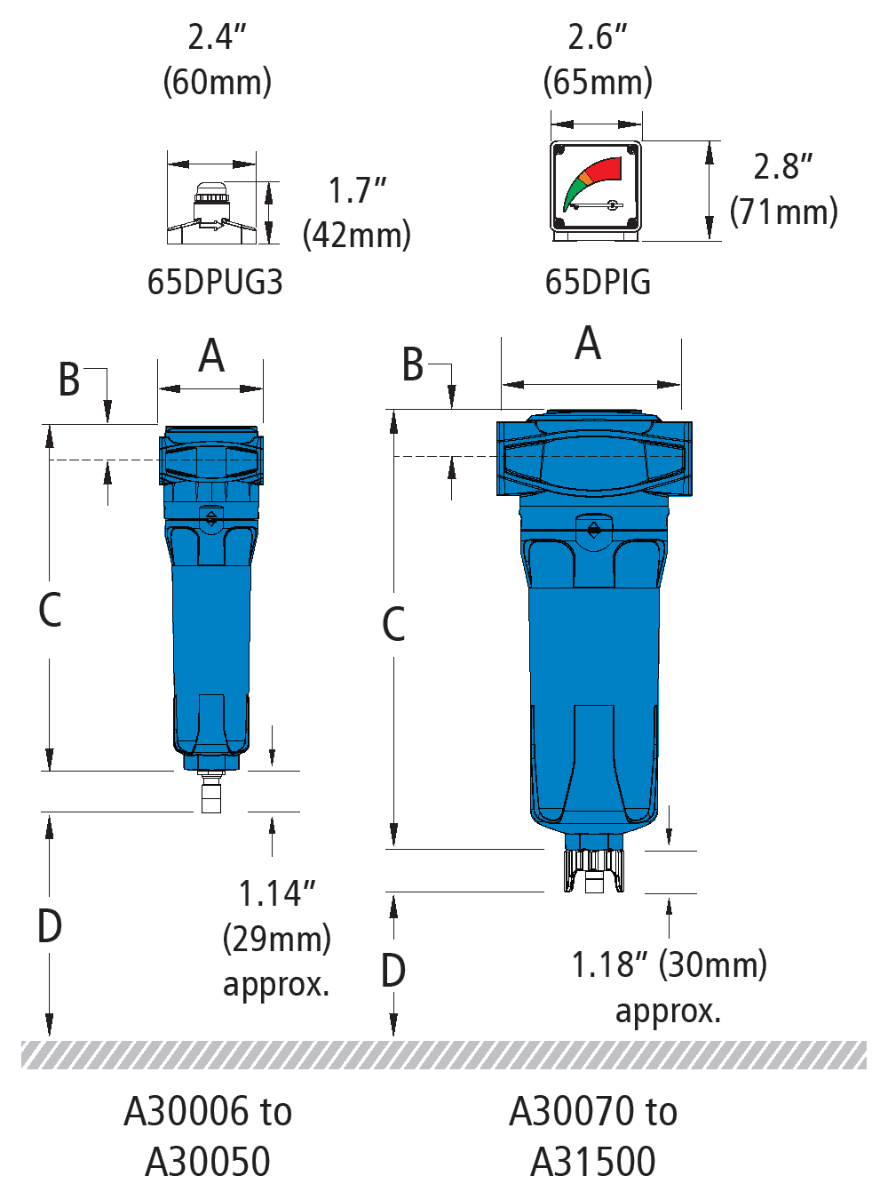

Pipe Size	Inlet Flow Rate (SCFM)*	A	B	C	D	Weight (Lbs)	Unit Model	Element Model
1/8"	6	1.97	0.67	6.18	2.36 (60)	0.7	A30006	E30306
1/4"	15	1.97	0.67	6.18	2.36 (60)	0.7	A30015	E30306
1/4"	25	2.76	0.91	7.44	2.76 (70)	1.1	A30025	E30408
3/8"	32	2.76	0.91	7.44	2.76 (70)	1.1	A30032	E30408
1/2"	50	2.76	0.91	9.09	2.76 (70)	1.3	A30050	E30412
1/2"	70	5	1.26	11.22	3.15 (80)	3.7	A30070	E30612
3/4"	85	5	1.26	11.22	3.15 (80)	3.7	A30085	E30612
1"	105	5	1.26	11.22	3.15 (80)	3.7	A30105	E30612
3/4"	125	5	1.26	14.57	3.15 (80)	4.4	A30125	E30621
1"	175	5	1.26	14.57	3.15 (80)	4.4	A30175	E30621
1.25"	280	5.51	1.61	18.74	3.35 (85)	6.6	A30280	E30731
1.5"	320	5.51	1.61	18.74	3.35 (85)	6.6	A30320	E30731
1.5"	400	6.69	2.08	20	3.94 (100)	10.8	A30400	E30831
2"	450	6.69	2.08	20	3.94 (100)	10.8	A30450	E30831
2"	700	6.69	2.08	27.87	3.94 (100)	12.1	A30700	E30850
2.5"	850	8.66	2.75	28.97	3.94 (100)	23.1	A30850	E31140
3"	900	8.66	2.75	28.97	3.94 (100)	23.1	A30900	E31140
3"	900	8.66	2.75	33.74	3.94 (100)	25.4	A31250	E31160
3"	1500	8.66	2.75	39.56	3.94 (100)	27.6	A31500	E31175

*Rated flow at 100 psig, reference conditions at 14.5 psi(a), 68°F

Coalescing Filter Element Specifications

Filter Grades	X5		X1		XA		AC
Particle Removal	5 micron		1 micron		0.01 micron		5 micron
Max Particle Size Class*	4		3		1		1
Max Oil Content*	4		3		1		1
Max Oil Carryover at 68°F (20°C)	5 ppm	5 mg/m³	0.3 ppm	0.3 mg/m³	0.01 ppm	0.01 mg/m³	0.003 ppm	0.003 mg/ m³
Pressure Loss - Clean & Dry	0.6 psi	40 mbar	0.8 psi	55 mbar	1.2 psi	85 mbar	1.7 psi	115 mbar
Pressure Loss - Saturated	1.1 psi	75 mbar	1.8 psi	125 mbar	1.8 psi	125 mbar	-
Pressure Loss - Element Change	12 months	8000 hrs	12 months	8000 hrs	12 months	8000 hrs	At least every 6 months
Max Temperature - Auto Drain	176°F	80°C	176°F	80°C	176°F	80°C	122°F**	50°C**
Max Working Pressure - Auto Drain	232 psig	16 barg	232 psig	16 barg	232 psig	16 barg	232 psig	16 barg
Max Temperature - Manual Drain	248°F	120°C	248°F	120°C	248°F	120°C	122°F**	50°C**
Max Working Pressure - Manual Drain	300 psig	20.7 barg	300 psig	20.7 barg	300 psig	20.7 barg	300 psig	20.7 barg
Element End Cap Color	Green		Red		Blue		Black

* to ISO 8573-1: 2010 ** Maximum recommended operating temperature 77°F (25°C)

Particulate Filter Element Specifications

Filter Grades	RX5		RX1		RXA		RAC
Filter Grades	Particle Removal	5 micron		1 micron		0.01 micron		0.01 micron
Max Particle Size Class*	4		3		1		1
Max Oil Carryover at 68°F (20°C)	-		-		-		0.003 ppm	0.003 mg/ m³
Pressure Loss - Clean & Dry	0.6 psi	40 mbar	1.1 psi	75 mbar	1.5 psi	100 mbar	1.1 psi	75 mbar
Pressure Loss - Element Change	12 months	8000 hrs	12 months	8000 hrs	12 months	8000 hrs	At least every 6 months
Max Temperature	248°F	120°C	248°F	120°C	248°F	120°C	122°F**	50°C**
Max Working Pressure	300 psig	20.7 barg	300 psig	20.7 barg	300 psig	20.7 barg	300 psig	20.7 barg
Element End Cap Color	Green		Red		Blue		Black

* to ISO 8573-1: 2010 ** Maximum recommended operating temperature 77°F (25°C)

Correction Factors

For maximum flow rate, multiply model flow rate by the correction factor corresponding to the minimum operating pressure:
Inlet Flow Rate x Operating Pressure CF = Maximum Flow Rate

Operating Pressure	PSIG	58 (4)	72 (5)	87 (6)	100 (7)	115 (8)	145 (10)	174 (12)	203 (14)	232 (16)	300 (20.7)
Operating Pressure	Correction Factor	0.76	0.84	0.92	1.00	1.07	1.19	1.31	1.41	1.51	1.73
