Oil-Water Separators

SmartSep Oil-Water Separators

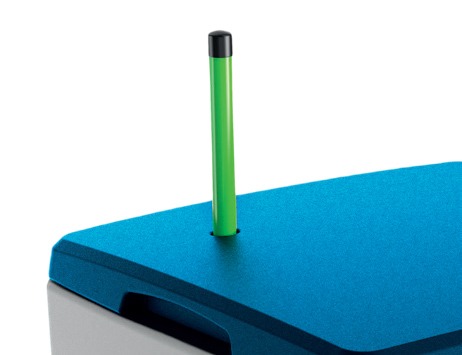

Saturation Indicator

Green indicator signals the need to replace the fully saturated polypropylene pre-filter

External Drain Valve

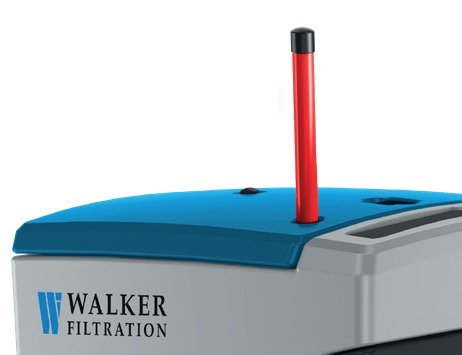

Red Smart Service Overflow indicator notifies the need to reduce the amount of condensate flow into the device

Test Outlet

Helps verify and monitor filtration performance between service intervals

Get the most out of your system with the device that provides optimal filtration and separation to meet and exceed environmental regulations across the globe.

Compact and efficient, the Walker Filtration SmartSep Oil-Water Separator Series is engineered to ensure the highest levels of condensate purity through a multi-stage filtration system.

Its 4,000-hour service interval and Smart Service Overflow Indicator helps eliminate costly external service testing and overall maintenance frequency.

Exclusive to SmartSep, the Organoclay cartridges allow your system to stay ahead of current and future environmental regulations by eliminating stable emulsions and heavy oil traces for the highest level of condensate purification.

Cost Saving Extended service periods and environmental compliance helps save money on frequent upkeep and costly violations
Simple Service Sensory overflow indicator, external test valve, and easy to swap polypropylene bags and cartridges save time on overall product maintenance

Comprehensive Range Various sizes and a compact design allow for the perfect fit for your compressed air system
Space Saver Manifold inlets for multiple condensate lines and wall brackets for small systems save space in compressor rooms

SSEP0032 and SSEP0066

Single-usage units ideal for space-saving and cost-efficiency

SSEP0132 to SSEP1655

Uses dual-stage filtration technology to remove a range of contaminants

SSEP3311

Utilizes multi-stage filtration for heavier condensate flows and further purification

SSEP6621

Comes with a flow divider to split condensate flow between two units

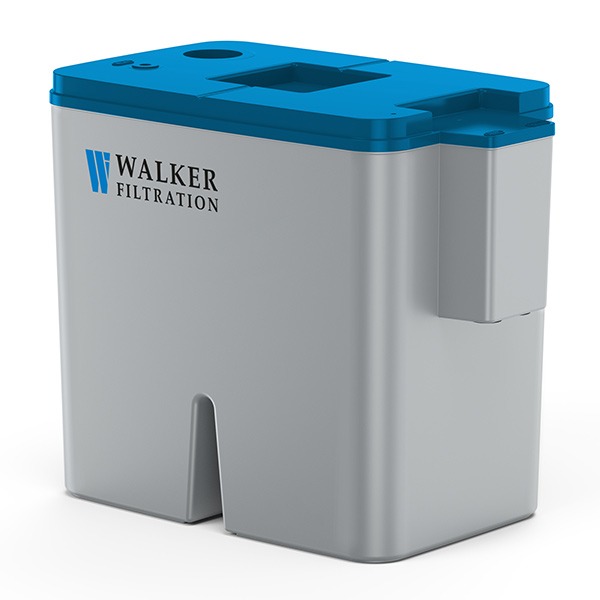

SSEP0032 and SSEP0066

Single-usage units ideal for space-saving and cost-efficiency

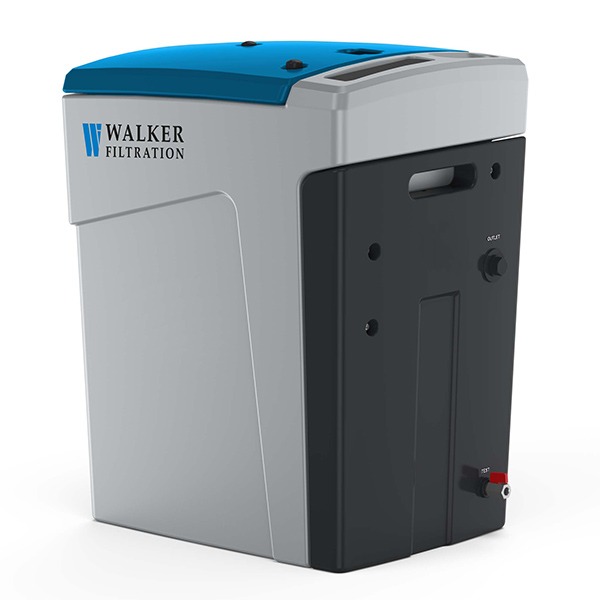

SSEP0132 to SSEP1655

Uses dual-stage filtration technology to remove a range of contaminants

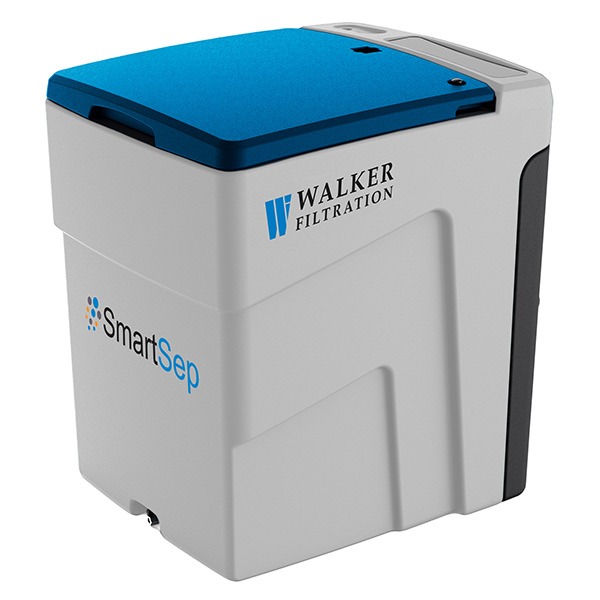

SSEP3311

Utilizes multi-stage filtration for heavier condensate flows and further purification

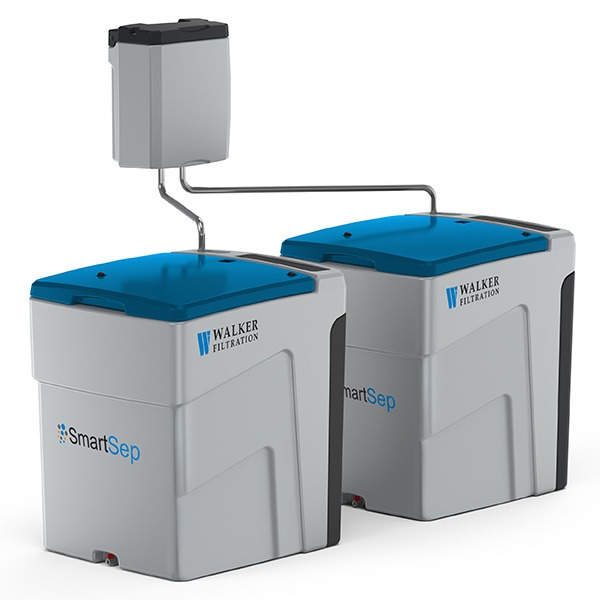

SSEP6621

Comes with a flow divider to split condensate flow between two units

SSEP0032 and SSEP0066

Single-usage units ideal for space-saving and cost-efficiency

SSEP0132 to SSEP1655

Uses dual-stage filtration technology to remove a range of contaminants

SSEP3311

Utilizes multi-stage filtration for heavier condensate flows and further purification

SSEP6621

Comes with a flow divider to split condensate flow between two units

SSEP0032 to SSEP6621 - Technical Specs

Flow Rates 32 SCFM to 6621 SCFM

Max Capacity (SCFM) w/out Dryer & Filters*	Max Capacity (SCFM) with Dryer & Filters*	Connections		Dimensions (Inches)			Weight (Lbs)	Unit Model	Service Kit**
Max Capacity (SCFM) w/out Dryer & Filters*	Max Capacity (SCFM) with Dryer & Filters*	Condensate Inlet	Water Outlet	Depth	Width	Height	Weight (Lbs)	Unit Model	Service Kit**
32	25	1/4"	3/8"	10	6	9	5.3	SSEP0032N	-
66	53	1/4"	3/8"	10	6	9	6.6	SSEP0066N	-
32	25	6mm	10mm	10	6	9	5.3	SSEP0032M	-
66	53	6mm	10mm	10	6	9	6.6	SSEP0066M	-
132	106	2 x 1/2"	1/2"	15	11	17	16.5	SSEP0132	SSEPSK0132
225	180	2 x 1/2"	1/2"	16	11	20	23.8	SSEP0225	SSEPSK0225
450	360	2 x 1/2"	1/2"	19	16	23	38.4	SSEP0450	SSEPSK0450
795	636	2 x 3/4"	3/4"	23	18	28	71.4	SSEP0795	SSEPSK0795
1655	1324	2 x 3/4"	3/4"	27	22	38	123.2	SSEP1655	SSEPSK1655
3311	2648	2 x 3/4"	3/4"	38	31	39	253.5	SSEP3311	SSEPSK3311
6621	5296	2 x 3/4"	3/4"	38 (x2)	31 (x2)	39 (x2)	529.1	SSEP6621	SSEPSK6621

*Rated capacities based upon 12 hour/day operation, 60% relative humidity, ambient temperature of 77°F & system operating pressure of 100 psig
**Service kit includes: condensate inlet system, pre filter system, fine filter, and miscellaneous parts

Correction Factors

Apply correction factors to unit model capacity using the following to find the adjusted model capacity:
Relative Humidity CF x Ambient Temperature CF x Running Hours CF x Model Capacity = Adjusted Model Capacity

Relative Humidty (HCF)	%	50	60	70	80	90	-	-
Relative Humidty (HCF)	Correction Factor	1.1	1	0.85	0.74	0.66	-	-

Ambient Temperature (TCF)	°F	59	68	77	86	95	104	-
Ambient Temperature (TCF)	Correction Factor	1.33	1.17	1	0.76	0.5	0.3	-

Running Hours Per Day (RCF)	Hours	12	14	16	18	20	22	24
Running Hours Per Day (RCF)	Correction Factor	1	0.86	0.75	0.67	0.60	0.55	0.50

Example

Operating Env		Correction Factor
Relative Humidity	50%	HCF = 1.1
Ambient Temperature	86°F	TCF = 0.76
Running Hours/Day	24	RCF = .5
Model Capacity	66	MC = 66
Adjusted Model Capacity	HCF x TCF x RCF x MC	1.1 x 0.76 x 0.5 x 66 = 27.72 SCFM

Accessories

Wall mounting kit for models SSEP0032 & SSPE0066	SSEPMBK1
Manifold for models SSEP0132 to SSEP0450	SSEPM1
Manifold for models SSEP0795 to SSEP6621	SSEPM2
